Consumables

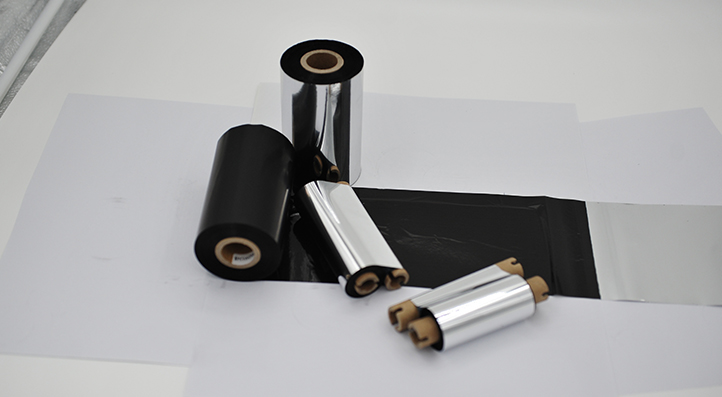

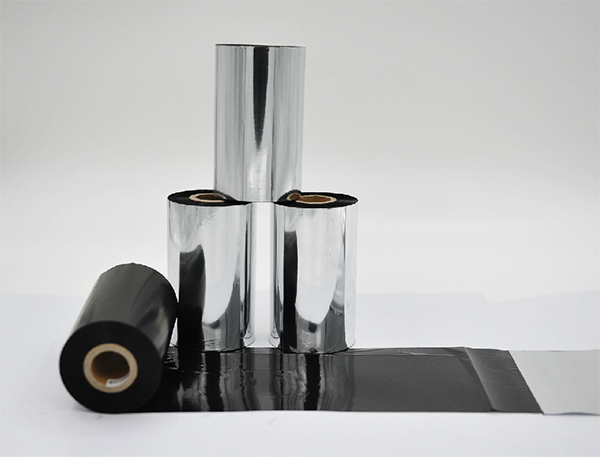

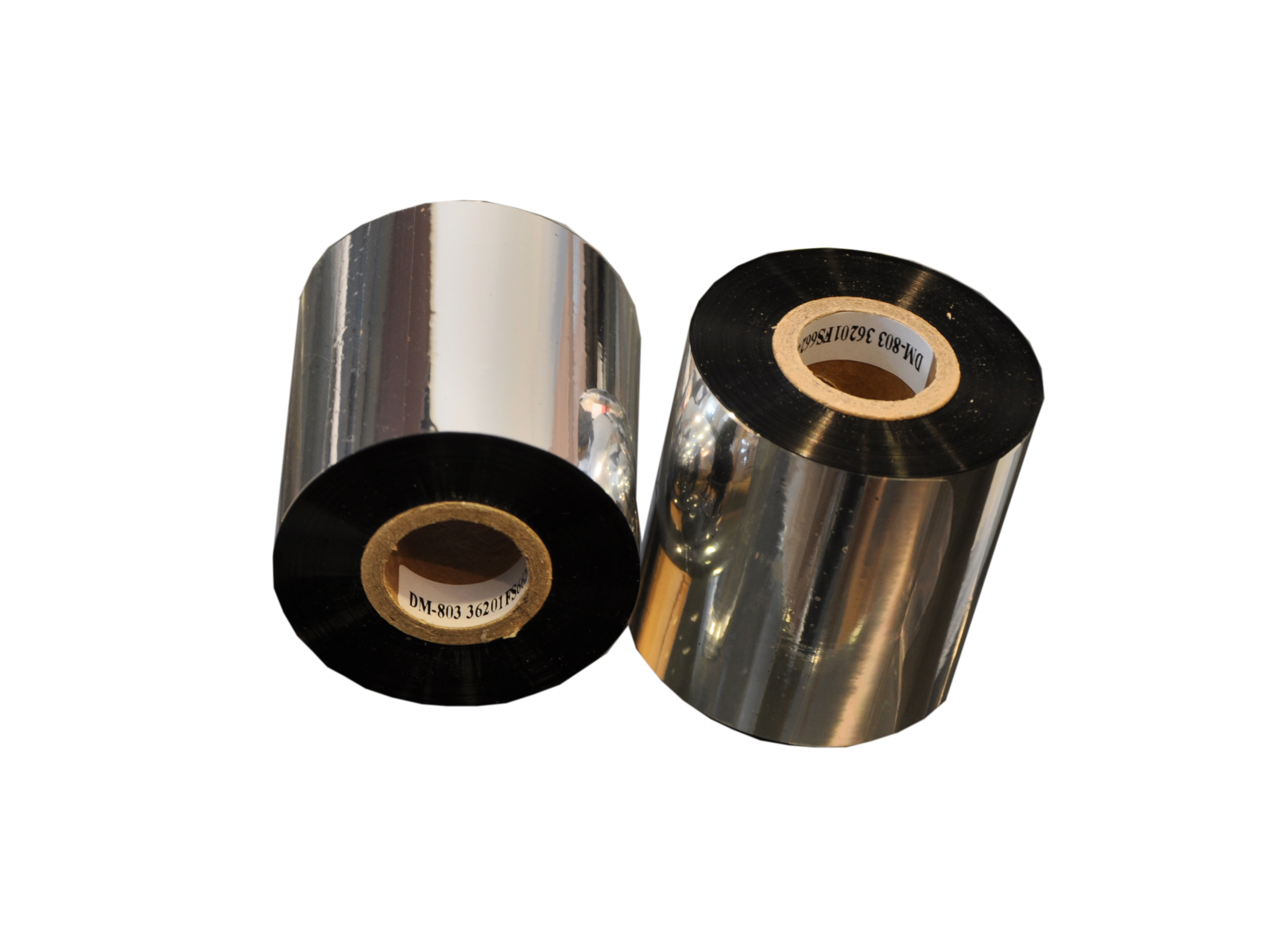

DM-8 TTR Ribbon

DM-8 TTR Ribbon
  • DM-8 Mixed Base Carbon Ribbon has excellent friction resistance, corrosion resistance, and a wide range of application.
  • The high-resolution performance is suitable for high-performance printers and simple type printers in various industrial and commercial fields ,and the high sensitivity ensures excellent printing effect.Anti-static coating effectively protects the print head.
  • Applying to electronic tags, gardening timber, drug labels, the automotive industry, logistics tracking, retail labels and tags.
  • Specific and good compatibility, ultra-low-energy level, scratch resistance, low noise, higher definition, etc.
  • DM-8 Mixed Base Carbon Ribbon is with high-quality friction resistance, corrosion resistance, and a wide range of application.
  • The high-resolution performance is suitable for high-performance printers and simple type printers in various industrial and commercial fields ,and the high sensitivity ensures excellent printing effect. Anti-static coating effectively protects the print head.






Specifications
Model
Ribbon Material
Suitable Material
DM-801
Wax
Ordinary coated paper
DM-802

Premium Wax-Resin

Coated paper
DM-803
DM-804
 Wax-Resin
Electronic tags, special smooth and not easy adherent material
DM-805
Resin

Parameters:

Carbon Thickness 7.3±0.3 μm
Ink Thickness 3.0±0.2 μm
Electrostatic ≤0.03 kv
Optical Density  ≥1.5 D
Color Density ≥2.1 DB
Printing Speed  12 IPS
Melting Point 80℃
Applicable Medium Coated paper,synthetic paper, label paper,coated paper,polyethylene(PE),polyethylene(PET)




Shanghai Demac Machinery Equipment Co., Ltd.
