Hot Stamp Coder

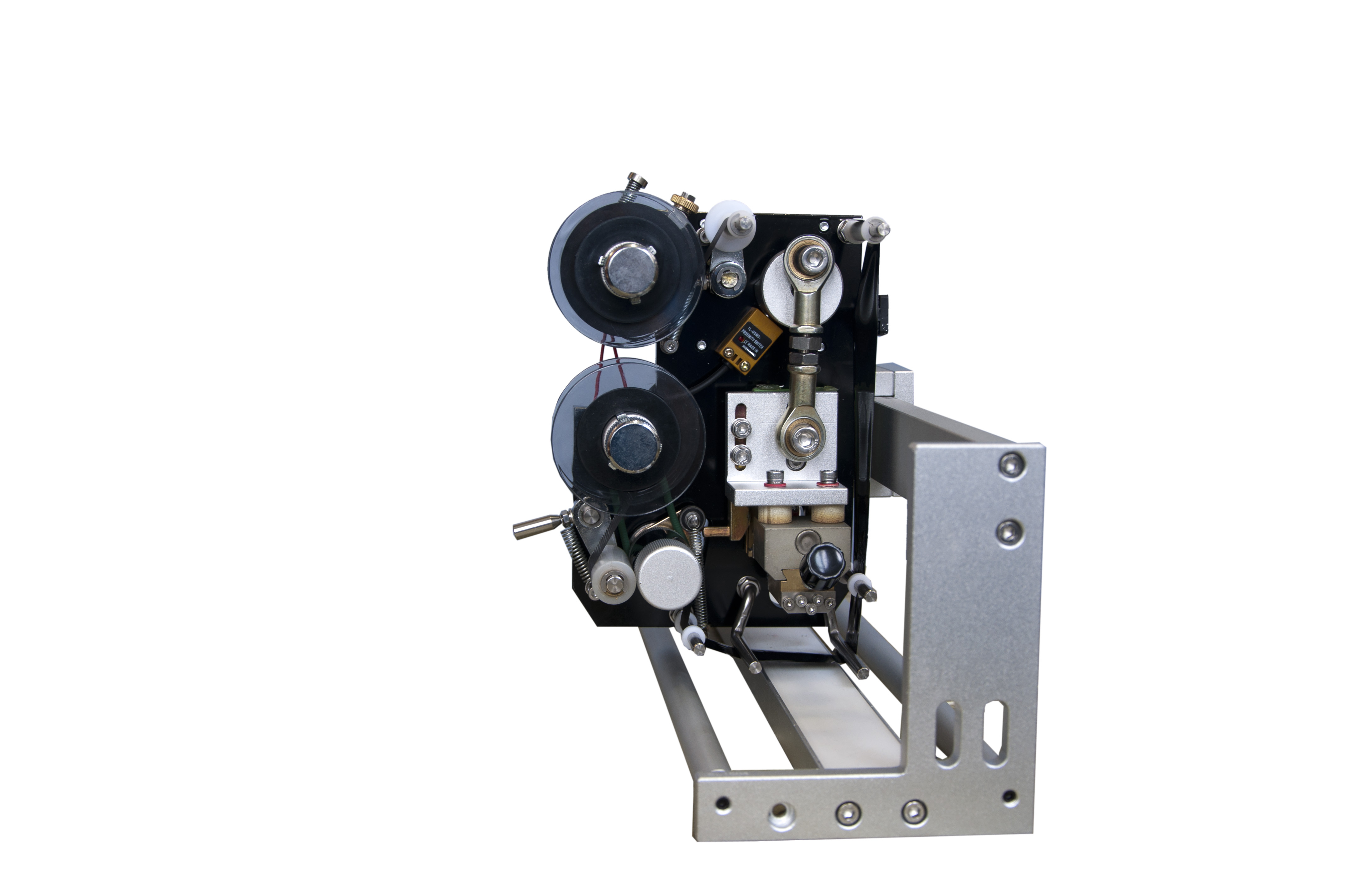

DM-208 Motor-Driven Online Hot Stamp Coder

DM-208 Motor-Driven Online Hot Stamp Coder

  • DM-208 Motor-Driven Online Hot Stamp Coder can be matched with intermittent bag making and sealing packing machine,such as vertical bag filling and packing machine, milk soft packing machine, boxed food packing machine.This machine is equipped with motor stroke switch that can trigger and control the machine, which has the advantages of small size, convenient installation,convenient use and maintenance.
  • It can easily print production date, batch number, expiration date, weight, price, size, origin, ingredients, additives, composition, quality identification, card number, registration number, manufacturer name, seller name.
Features:
  1. It adopts hot stamping ribbon, printing words clearly.
  2. Special word structure and movable words are easy to install and removal.
  3. Suitable for  the majority of packaging materials, such as plastic, leather, cloth, paper etc.










Specifications
Model
DM-208
Print Area
Single line: max 4 mm*35 mm, about  15 characters;
Two lines: max 8 mm*35 mm, about 30 characters;
Three lines: max 12 mm*35 mm, about 45 characters;
Numbers,letters,symbols can be printed,and any other special characters can also be customized.
Print Speed
≤ 120 times/min
Types
2*3*15 mm,  2*4*15 mm
Ribbon Size
25mm*100m,  30mm*100m,  35mm*100m,
Vol & Power
AC200V±10V, 50/60Hz, 200W
Mode
Motor-driven
Consumable
Hot Stamping Ribbon
Net Weight
8.5 kg
