Thermal Transfer Overprinter

Thermal Transfer Overprinter T30/50

Source：Thermal Transfer OverprinterPublished：2020-09-21

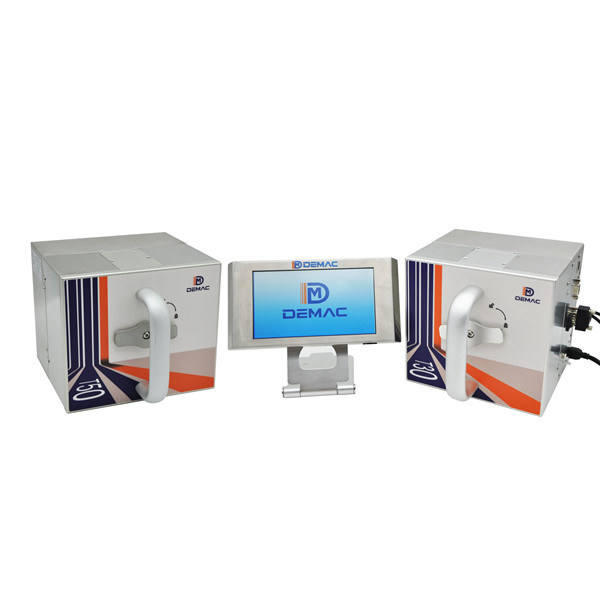

Thermal Transfer Overprinter T30/50
  • CREATEMATE T series Thermal Transfer Overprinter represents an advanced coding solution that can meet personalized and diversified, demands from customers invarious industries, such as food,medicine, daily chemical, seeds,veterinary drugs, pesticides,household paper, finance, etc.
  • The new improved T30 and T50 TTO printers deliver:
    ◆ Intermittent/Continuous Combined – more flexible to meet customers’ coding requirements.
    ◆ Excellent Quality Prints – improving your company brand image and quality.
    ◆ Wide Printing Area – maximum 70mm (intermittent) and 150mm (continuous) length
    ◆ Superior Printing Speed – can be set from 33mm to 666mm per second allowing 350 printed packs per min
    at 300dpi.
    ◆ More Print Flexibility – can print real time, variable data, bar codes, QR codes, logo, pictures, dates,
    nutrition tables, etc, achieve the product traceability.
  • Cost Reduction
    ◆ Dockable 7-inch LCD handheld Touch Pad, can be
    removed during the printer running, to control different
    printer units, largely reducing the cost.
    ◆ Optimized ribbon usage, 0.1mm gap between prints.
    ◆ Ribbon saving features help to minimize reduce
    ribbon consumption and waste.
  • High-performance Printing

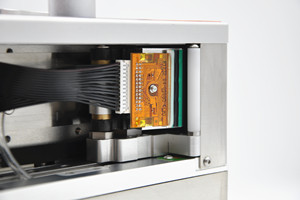

    ◆ Introducing intelligent printhead, with automatic setup for optimum
    print quality.
    ◆ Optional promotional coding feature allowing for a unique code on
    each pack.
  • Simple Operation
    ◆ Optional standard mounting bracket helps installation become easy.
    ◆ Friendly interface makes the menu and parameters setting
    convenient.
    ◆ Improved cassette helps the ribbon replacement simple.
    ◆ Designer program is included in packages, using a USB memory stick
    for image downloading.
  • Optional Accessories
    ◆ Code-detection System
    ◆ PC Based Interface
    ◆ Mounting Bracket
    ◆ Encoder Assy





Specifications
Model T30 T30 T50 T50
Intermittent Continuous  Intermittent Continuous
Print Head 32mm,300dpi (12points/mm) 53mm,300dpi (12pionts/mm)
Print Area 32mm*70mm 32mm*150mm 53mm*70mm 53mm*150mm
Print Speed At Fixed Speed ≦40 m/min At Fixed Speed ≦40 m/min
Print Frequency ≤ 200 times/min ≤ 350 times/min ≤ 200 times/min ≤ 350 times/min
Max Ribbon Len 500mm 600mm
Print Job Real time clock (hours/minutes), dates, user entered alphanumeric date, automatic shift code, automatic serial number, logos, bar codes, QR codes, nutrition tables, etc.
Bar code
 		 Code128(Support GS1 Mode), EANX, Code11, QR code(Support GS1 Mode), C25matrix, C25inter, C25iata, Upca, Upce, EAN128, PDF417, DataMatrix(Support GS1 Mode), etc.

PC Based Interface
 		 Include all features of the Touch Pad interface, support promotional codes, unique random codes, manage max. 6 printer units meantime, provide communications protocols.
More features
 		 Ribbon saving modes; automatic repeat prints; position-compensation prints (can have multiple choices)
Menu languages Simplified Chinese, English, traditional Chinese, Spanish, Portuguese, French, Arabic, German, Russian, etc.
Touch Pad Support Hot-plugging
COM Interface USB,RS232,TCP/IP
Max Ribbon Len 500m 600m
Ribbon Width 22mm ~ 33mm 35mm ~ 55mm
Power Supply AV110~240V 50/60Hz
Power 200W
Dimension(L*W*H) 190mm*180mm*170mm 210mm*180mm*170mm
Handheld Touch Pad: 220mm*120mm*30mm
Weight Print Unit: 7.5kg, Touch Pad: 0.75kg Print Unit: 8.0kg, Touch Pad: 0.75kg
Working Env. Temperature: 0-40℃ Humidity: 10-90% (non-condensing)
Air Supply 0.35~0.6Mpa, Dry, Clean
